20000 Square Meter Prefabricated Steel Structure Warehouse For Manufacture

Steel Structure Warehouse

Place of Origin Guangdong Foshan Lishui, China
Brand Name TPA Housing
Certification ISO, SGS,BV
Model Number TPA-LSB83

Description:

20000 Square Meter Prefabricated Steel Structure Warehouse For Manufacture

Product Details
Material:
Q235 Q355 Low Carbon Steel
Type:
Light Steel Structure Frame
Wall Color:
Grey,white
Life Span:
Steel Frame About 50 Years
Structural Steel Fabrication:
Painting/galvanizing
Wall Panel:
EPS/rock Wool/PU Sandwich Panel, Single Steel Sheet,
Drawing Design:
AutoCAD
Installation:
Installation Drawing Or Engineers Guidance
Payment & Shipping Terms
Minimum Order Quantity
50 square meters
Price
Negotiable
Packaging Details
In bulk
Delivery Time
5-8 work days
Payment Terms
T/T, L/C at sight
Supply Ability
100000 square meters per month
Product Description

20000 Square Meter Prefabricated Steel Structure Warehouse For Manufacture

1. Steel warehouse building material parameter

Anchor bolt M20
High streng bolt M20, 10.9s
Shear nail M16
Common bolt M20
Brace M12
Tie rod Ø12
Column(Q345B) Square tube250*250*10*10 Square tube250*250*5*5
Roof beam(Q345B) HN340X250X9X14
Roof frame beam(Q345B) HN294X200X8X12
Floor main beam(Q345B) HN294X200X8X12
Floor secondary beam(Q345B) HN244X175X7X11
Staircases(Q235B) H200X200X6X8+5mm chequered plate
Stair beam(Q235B) H300X200X6X8
Roof purlin C140X60X20X3.0
Connecting plate 3~8mm
Roof tile 75mm rock wool,color sheet both sides 0.426mm
Wall panel 75mm rock wool,color sheet both sides 0.426mm
Floor deck 1.0mm
Steel door 900*2100
Aluminum windows 2000*1500
Zinc steel handrails Square tube80X40+40+30+20
Trimming 1.0mm galvanized sheet, color steel sheet

2. About steel warehouse buildings

20000 Square Meter Prefabricated Steel Structure Warehouse For Manufacture 0

Whether you’re expanding your current business or starting a new venture in the industrial sector, a metal or steel building from TPA Housing steel structure building is your solution. At the core of our success is a team of dedicated, skilled engineers who will provide you with a high quality product. They will take the time to help you design and achieve your vision. Industrial buildings such as warehouses, welding shops and heavy equipment storage facilities require durability and that’s exactly what you get when you purchase one of our steel buildings. No building is too large and no requirement is too complex.

3. Advantage of steel structure warehouse

Following are a list of advantages of steel structure construction offers:

1. Steel is a highly durable metal. It can withstand a considerable amount of external pressure. Hence, steel structures are earthquake resistant whereas concrete structures are brittle. Concrete is not as resistant as steel.

2. Steel structures have a good load carrying capacity unlike concrete structures, which have a low load carrying capacity.

3. Steel is a tensile metal. It has a high strength to weight ratio. Steel structures weigh 60% lesser than concrete.

4. Steel structures can be made without a foundation but this is not applicable to concrete structures as they are heavy.

5. The construction process is faster with steel structures as they are easy to erect. This contributes to faster project completion. On the other hand, concrete construction is time-consuming.

6. Having a good scrap value also makes structural steel a better option than concrete which has practically no scrap value.

7. Steel structures can be easily fabricated and mass produced. They are so versatile that they can be easily assembled, disassembled and replaced. Steel structures can be modified even for last minute changes.

8. Another advantage of steel structures is that they can be constructed off-site by professional steel fabricators and then assembled on site.

9. Steel structures are an eco-friendly option as they are easily recyclable. This means you get to save money in waste management.

10. Lastly, steel structures are easy to transport as they are lightweight. Steel structure construction is a safe option, there are no health hazards of using steel structures in construction.

4. Basic Design Requirements: design Load: (very important)

1. Snow load:

2. Wind load:
3. Seismic magnitude:

4. Middle Column allowed or not:
5. Project location:
6. Length (sidewall, m):
7. Width (end wall, m):
8. Wall Height (eave, m):
9. Mezzanine or not? And usage:

5. A steel structure warehouse can also be used for:

1) Industrial Buildings

2) Manufacturing Facilities

3) Warehouses

4) Construction Equipment Storage

5) Machinery Storage

6) Tool Storage

7) Warehouse Expansion

8) & More, tell us about your needs here!

6. Steel structure Warehouse Drawings & Quotation:

1) Customized design is welcomed.
2) As long as you like, we can design and provide drawings for you.
3) In order to give you an exact quotation and drawings, please let us know the length, width, eave height, and local weather. We will quote for you promptly.

Our drawings are as follows:

20000 Square Meter Prefabricated Steel Structure Warehouse For Manufacture 1

20000 Square Meter Prefabricated Steel Structure Warehouse For Manufacture 2



7. Loading pictures of steel warehouse building reference

The door and window will be packed safely to prevent damage. We will responsible for all missing components and wrong parts. We will provide insurance services for shipment to avoid any mistakes.



20000 Square Meter Prefabricated Steel Structure Warehouse For Manufacture 3



8. Steel Structure warehouse materials and accessories



20000 Square Meter Prefabricated Steel Structure Warehouse For Manufacture 4

20000 Square Meter Prefabricated Steel Structure Warehouse For Manufacture 5

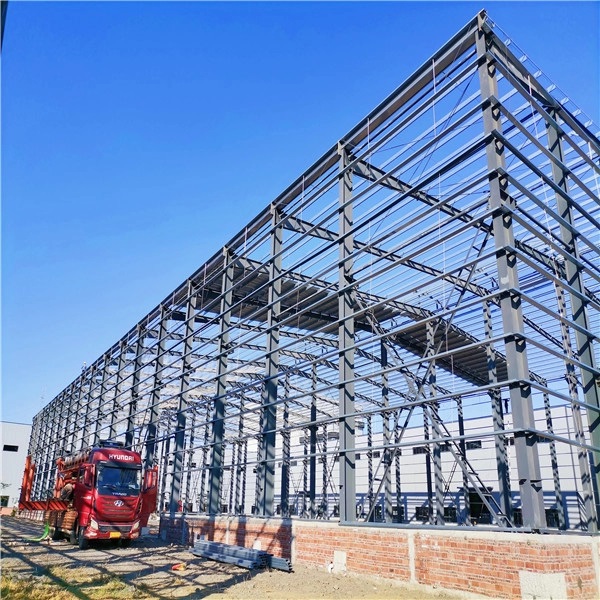

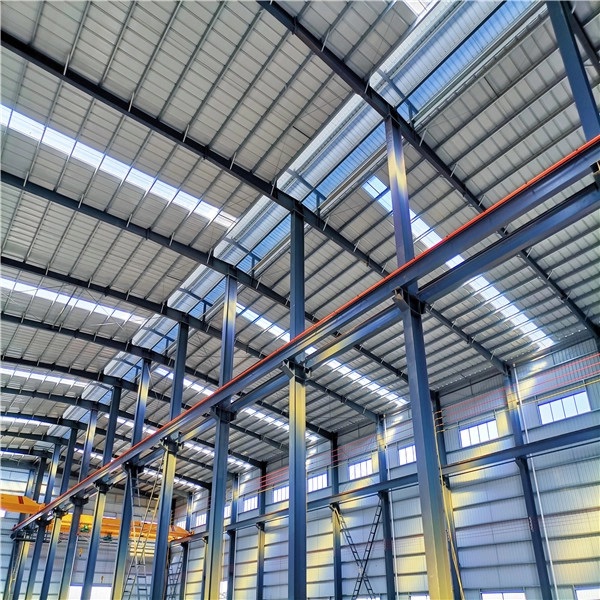

9. Steel structure warehouse installation picture for reference

20000 Square Meter Prefabricated Steel Structure Warehouse For Manufacture 620000 Square Meter Prefabricated Steel Structure Warehouse For Manufacture 7
