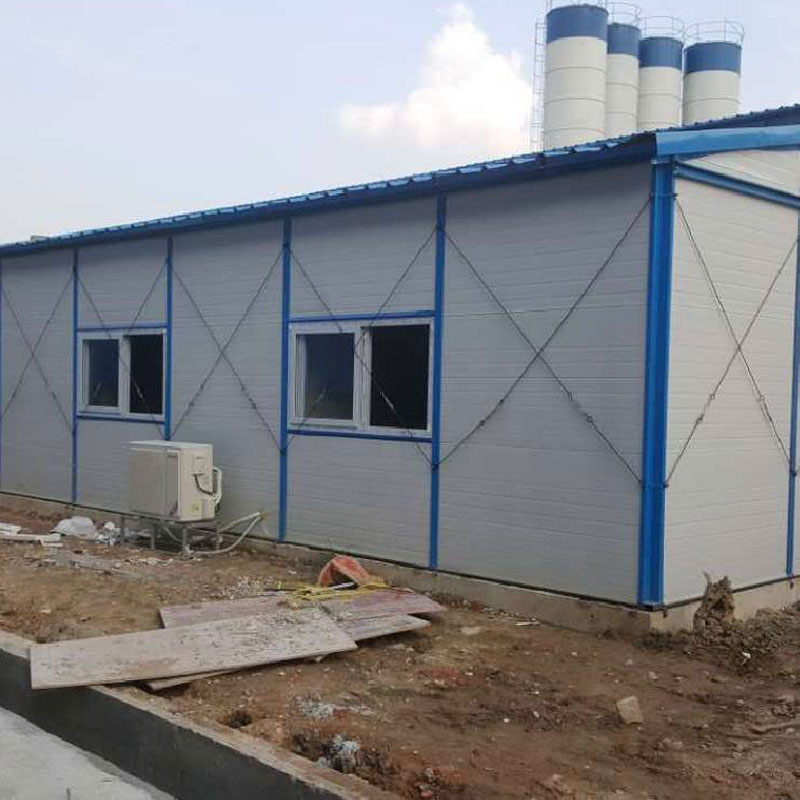

Construction site worker dormitory prefab house
Why do we call it K type prefab house?
It is because the house size is base on K size.(1K=1820mm)
For example, if the house size is 3K X 8K X3P (P=960mm)
House is size with be:{(3×1820)+160} x {(8×1820)+160)} x 3x960mm
That is 5620mm(W) x 14720mm(L) x 2880mm(H)
Description：
Construction site worker dormitory prefab house
Why do we need to add 160mm?
It is because the house length and width two ends have steel structure frame that each end will increase 80mm, so two ends will be 160mm.
The K type prefab house main steel frame is making by C section steel, and it full use of the strengths of sandwich panel. The wall panel, the roof panel is fixed on the steel frame by bolts and screws.
Sandwich panel specification:
Width:950/1150mm(Wall panel),1050mm(roof panel)
Length: Customized(base on the house size)
Total thickness:50/75/100/125/150mm
Steel sheet thickness:0.286/0.326/0.375/0.426/0.476/0.5/0.6/0.7mm
Material Component:
- Ground beam: C80x35x15x1.5mm
- Column: Double C80x35x15x1.8mm
- Ring beam: C80x35x15x1.5mm
- Corner column: Double C80x35x15x1.8mm
- Roof beam: C80*35*15*1.5mm
- Floor beam: C80x35x15x1.5mm(only for 2 floors house)
- Aisle board: 2.2mm chequered board
- Stair: 2.2mm chequered board and 30mm square tube (only for 2 floors house)
- Floor plate: 14mm plywood (only for 2 floors house)
- Wall panel : 50mm EPS Sandwich panel
- Roof panel: 50mm EPS Sandwich panel(corrugated shape)
- Window: PVC slidding window
- Door: sandwich panel door
- Accessories: screws,glue,trimming ect.
- Steel structure frame finished by painting.
Prefab house application
1) Temporary housing
- Site headquarters(office building)
3) Worker dormitroy
4) Labor camp
- Refuee housing
Prefab house characteristic
Environmentally friendly, fast assembly, low cost, easy transport, good insulation, and waterproof, etc.
Products Service Scope
1.Customized design service
OEM, wholesale, and retail are all acceptable.
2.Logistic service
Trucking, customs, shipping, or even door to door services.
3.Quality assurance service
We are responsible for all missing components and the wrong parts.
4.After-sales service
Engineer guide on-site, installation management, in time communication on line
Market
We produce, and expert in steel building/villa house/prefab house since 2008.
Our main markets are Southeast Asia, Africa, the Middle East, and some island countries, etc.
