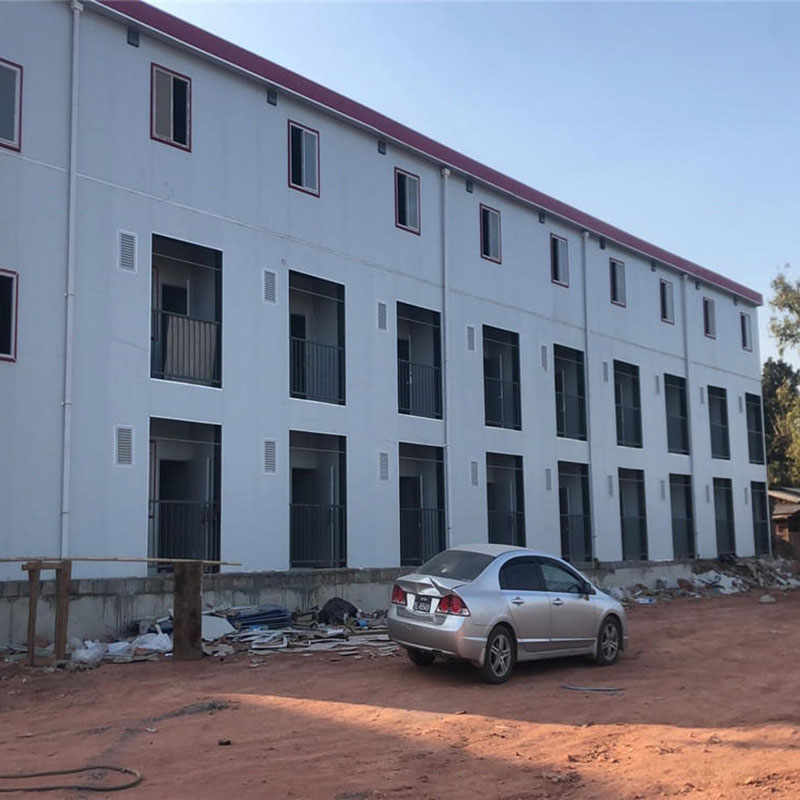

High Rise T Type Prefab House Prefabricated Building In Myanmar
High Rise T Type Prefab House Prefabricated Building In Myanmar
Why do we call it T type prefab house?
It is because the house base on K size.(1K=1820mm),we call it a K-type house. Those ones which are not based on K type, the customized size house we call it T type house.
Description：
High Rise T Type Prefab House Prefabricated Building In Myanmar
The T Type Prefab House Prefabricated Building main steel frame is making by square tube, and it full use of the strengths of sandwich panel. The wall panel, the roof panel is fixed on the steel frame by bolts and screws.
Sandwich panel specification:
Width:950/1150mm(Wall panel),1050mm(roof panel)
Length: Customized(base on the house size)
Total thickness:50/75/100/125/150mm
Steel sheet thickness:0.286/0.326/0.375/0.426/0.476/0.5/0.6/0.7mm
Material Component:
- Column: 80/100/120mm*2.0mm square tube
- Roof truss: 80*40mm+50*30mm square tube
- Floor beam: HN248*124*5*8mm (only for 2 floors house)
- Floor second beam: C160*45*20*2.0 (only for 2 floors house)
- Ring beam: 100mm*2.0mm square tube
- Aisle board: 2.2mm chequered board
- Roof purlin(galvanized): C100*40*15*2.0
- Stair: 2.2mm chequered board and 30mm square tube (only for 2 floors house)
- Floor plate: 14mm plywood (only for 2 floors house)
- Wall panel : 50mm EPS Sandwich panel
- Roof panel: 50mm EPS Sandwich panel(corrugated shape)
- Wall cladding: PVC cladding
- Roof decoration: Asphalt shingles
- Window: PVC slidding window
- Door: sandwich panel door
- Accessories: screws,glue,trimming ect.
- Steel structure frame finished by painting.
Prefab house application
1) Temporary prefab home
- Small hotel/motel
- Worker accomodation
- Office building
- Kitchen, fast food restaurant
- Small shop,grocery store
1.Customized design service
OEM, wholesale, and retail are all acceptable.
2.Logistic service
Trucking, customs, shipping, or even door to door services.
3.Quality assurance service
We are responsible for all missing components and the wrong parts.
4.After-sales service
Engineer guide on-site, installation management, in time communication on line
Market
We produce, and expert in steel building/villa house/prefab house since 2008.
Our main markets are Southeast Asia, Africa, the Middle East, and some island countries, etc.
