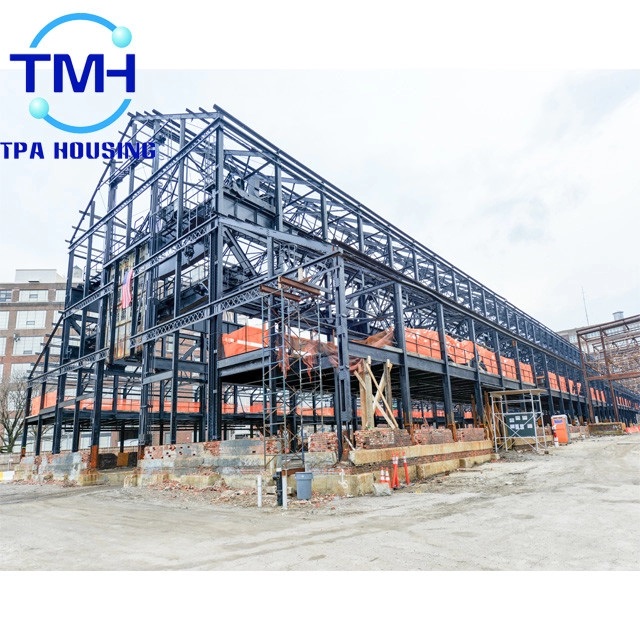

Large Span Multi Story Light Steel Structure Building Steel Structure Construction
Large Span Multi Story Light Steel Structure Building Steel Structure Construction
| Place of Origin | Guangdong Foshan Lishui, China |
| Brand Name | TPA Housing |
| Certification | ISO, SGS,BV |
| Model Number | TPA-LSB89 |
Description：
Large Span Multi Story Light Steel Structure Building Steel Structure Construction
Multi Story Light Steel Structure Building
,
Q355 Light Steel Structure Building
1. Steel warehouse building material parameter
Â
| Anchor bolt | M20 |
| High streng bolt | M20, 10.9s |
| Shear nail | M16 |
| Common bolt | M20 |
| Brace | M12 |
| Tie rod | Ø12 |
| Column(Q345B) | Square tube250*250*10*10 Square tube250*250*5*5 |
| Roof beam(Q345B) | HN340X250X9X14 |
| Roof frame beam(Q345B) | HN294X200X8X12 |
| Floor main beam(Q345B) | HN294X200X8X12 |
| Floor secondary beam(Q345B) | HN244X175X7X11 |
| Staircases(Q235B) | H200X200X6X8+5mm chequered plate |
| Stair beam(Q235B) | H300X200X6X8 |
| Roof purlin | C140X60X20X3.0 |
| Connecting plate | 3~8mm |
| Roof tile | 75mm rock wool,color sheet both sides 0.426mm |
| Wall panel | 75mm rock wool,color sheet both sides 0.426mm |
| Floor deck | 1.0mm |
| Steel door | 900*2100 |
| Aluminum windows | 2000*1500 |
| Zinc steel handrails | Square tube80X40+40+30+20 |
| Trimming | 1.0mm galvanized sheet, color steel sheet |
2. About steel warehouse buildings
Whether you’re expanding your current business or starting a new venture in the industrial sector, a metal or steel building from TPA Housing steel structure building is your solution. At the core of our success is a team of dedicated, skilled engineers who will provide you with a high quality product. They will take the time to help you design and achieve your vision. Industrial buildings such as warehouses, welding shops and heavy equipment storage facilities require durability and that’s exactly what you get when you purchase one of our steel buildings. No building is too large and no requirement is too complex.
3. Structural steel buildings
Structural steel framing is an option for low-rise, mid-rise, and high-rise building projects. It typically refers to building frame systems where the vertical and horizontal structural elements are formed by a system of structural steel beams and columns.
4. Basic Design Requirements:Â design Load: (very important)
1. Snow load:
2. Wind load:
3. Seismic magnitude:
4. Middle Column allowed or not:
5. Project location:
6. Length (sidewall, m):
7. Width (end wall, m):
8. Wall Height (eave, m):
9. Mezzanine or not? And usage:
5. A steel structure warehouse can also be used for:
1) Industrial Buildings
2) Manufacturing Facilities
3) Warehouses
4) Construction Equipment Storage
5) Machinery Storage
6) Tool Storage
7) Warehouse Expansion
8) & More, tell us about your needs here!
6. Steel structure Warehouse Drawings & Quotation:
1) Customized design is welcomed.
2) As long as you like, we can design and provide drawings for you.
3) In order to give you an exact quotation and drawings, please let us know the length, width, eave height, and local weather. We will quote for you promptly.
Our drawings are as follows:
7. Loading pictures of steel warehouse building reference
The door and window will be packed safely to prevent damage. We will responsible for all missing components and wrong parts. We will provide insurance services for shipment to avoid any mistakes.
8. Steel Structure warehouse materials and accessories
9. Steel structure building installation picture for reference
