light steel villa house
Unlike Light gauge steel framing villa house, foamed cement panel villa house steel frame is made by the square tube for the column and roof truss.
Description:

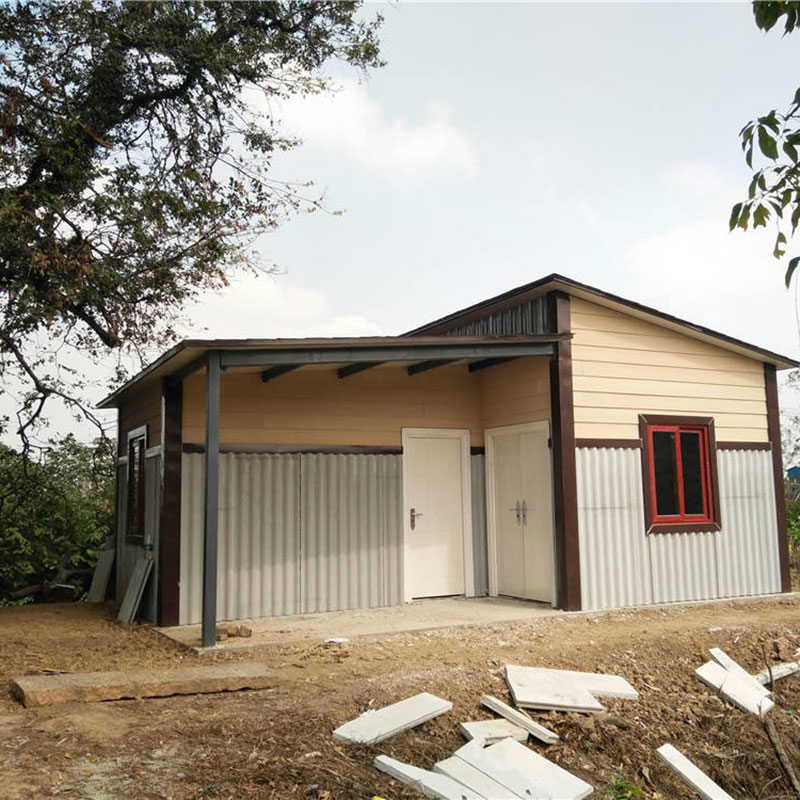

Tiny size prefabricated light steel villa house
1.MaterialsÂ
Main steel frame: 80/100/120mm square tube with thickness in 2.0~3.0mm.
Wall system:50/75/125/150mm thickness foamed cement panel with standard size 610x2440mm
Roof system: Steel sandwich panel with Asphalt shingle or resin tile decorated
Window: Aluminum/PVC sliding window single or double glazed glass.
Door:Steel door/wooden door/aluminum door/PVC door.
Accessories:trimming,screws,glass glue ect.
Steel frame structure:
Foamed cement panel:
Specification and application of foamed cement panel:
Thickness | Length | Width | Weight | Tolerance | Application |
50mm | 2440 mm | 610mm | 43kg/m2 | ±1~5mm | Internal wall,external wall,Floors |
75mm | 56kg/m2 | ||||
100mm | 70kg/m2 | ||||
125mm | 85kg/m2 | ||||
150mm | 100kg/m2 |
Fire resistance
Thickness | Fire Resistance Rating | Sound Reduction(dB) |
50mm | ≥1.0H | ≥35 |
75mm | ≥2.5H | ≥40 |
100mm | ≥4.0H | ≥45 |
125mm | ≥4.5H | ≥48 |
150mm | ≥5.0H | ≥50 |
2.Fasteners( bolts and nuts) for jointingÂ
Expansion Bolt used to fix the steel column to the concrete floor, standard bolt and galvanized bolt used to fix the steel structure when assembling the steel frame pcs by pcs, the foam cement panel connected by perfect joint and fix with a steel bar on the ground and weld on the steel beam.
3. LoadsÂ
Roof dead load: 5.0 kN/m 2
Roof live load: 0.5 kN/m 2
Wind speed or wind load: 80~110 km/h
Floor dead load: 5.0 kN/m 2
Floor live load: 5.0 kN/m 2
The advantages of light steel villa
1.Low maintenance costs
2.Environmentally friendly, recycling.
3.Flexibility when fixing doors, windows, and interior partitions
4.Steel structure construction is strong, durable, and stable.
5.steel components are resistant to termites and other destructive insects.
6.Long service life for more than 35 years
7.Fast construction, easy installation, and convenient to transport.
Light steel villa can work for any building application
1) Residence
2) Tourist and holiday house
3) Family house
4) Government residential project
5) Real estate development project
6) Constructions for other purposes
Products Service Scope
1.Customized design service
OEM, wholesale, and retail are all acceptable.
2.Logistic service
Trucking, customs, shipping, or even door to door services.
3.Quality assurance service
We are responsible for all missing components and the wrong parts.
4.After-sales service
Engineer guide on-site, installation management, in time communication on line
Market
We produce, and expert in steel building/villa house/prefab house since 2008.
Our main markets are Southeast Asia, Africa, the Middle East, and some island countries, etc.
Tiny Prefabricated Steel Villa House
professional Tiny Prefabricated light steel villa house design
