steel structure workshop

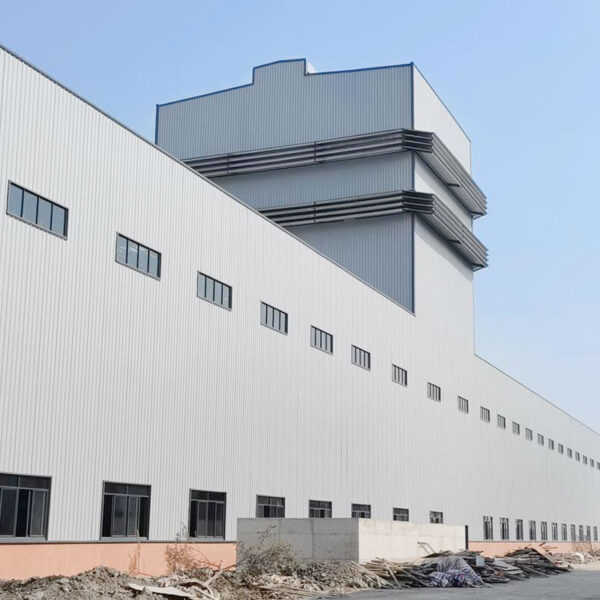

Steel Structure Workshop Buildings are more cost-effective than other traditional concrete block building systems, cause steel is the super-strong material that can use less material to achieve the same structural scale. And all steel framing members are cut, welded, drilled, painted at the factory. They can be bolted together once they arrive at the construction site.
Description：
Industrial construction building material steel frame steel structure workshop.
Product Information
Product type: Steel Structure Workshop
Industrial construction building material steel frame steel structure workshop
STEEL STRUCTURE DESIGN SPECIFICATION
1. Loads
Roof dead load: 0.25 kN/m 2
Roof live load: 0.3 kN/m 2
Wind speed or wind load: 100~280km/h
Anti-seismic :7~9 grade
2. MaterialsÂ
Main beam and post: GB Q355B grade, welded H steel section.
Sub steel structure: GB Q235B grade, steel bar, pipe, angle steel, etc.
Purlin: galvanized, C section.
3. WeldingÂ
The minimum size of the fillet welding for any which not defined in the
drawings shall be 6mm with full welding.
4. Fasteners( bolts and nuts) for jointing
High Strength bolts Class 10.9 used to connect the Steel Columns and
pressure type high strength bolts Class 10.9 used to connect the
constructional elements.
5. Derusting and painting
Shot blasting to 2.5 and Applying of Paint with following
1st coat of Primary auti-rust paint 30 microns (Epoxy zinc-rich primer)
2nd coat of Primary auti-rust paint 30 microns(Alkyd finish)
Steel Structure Workshop Characteristics
1. Affordable: be inexpensive to manufacture, requires less maintenance than other traditional building methods. Moreover, 98% of all steel structures can be recycled into new steel products without reducing physical properties.
2. Assemble Quickly: steel structures can be erected quickly. The accuracy of steel components speeds up the process and allows monitoring of the management software to complete sooner.
3. Health and safety:Â Structural Steel is manufactured at the factory and rapid erection on the construction site by skilled personnel making steel structure safe. Industry surveys consistently demonstrate that the steel structure is the safest solution. There is very little noise and dust in the process of steel structure erection because structural steel members are fabricated at the factory.
4. Flexibility:Â Can be modified in the future for a new application, loading conditions, vertical expansions, and changes in the owner’s desires in ways that other framing systems can not accomplish.
5.Durable:Â We design the steel structure workshop not only functional but also to stand strong and last long. Â The mainframe structure can remain its strength and value for around 50 years.
Market:
Our main markets are Southeast Asia, 30% of our clients are from the Philippines, we are quite familiar with the Philippine market.
Packaging &Â Shipping
1. Steel structure columns and beams will be loaded into a 40ft OT / 40ft normal container.
2. Sandwich panels, windows, doors, and other accessories will be loaded into a 40ft HQ container.
We are ready to assist you with all kinds of steel structures building fabrication projects.
