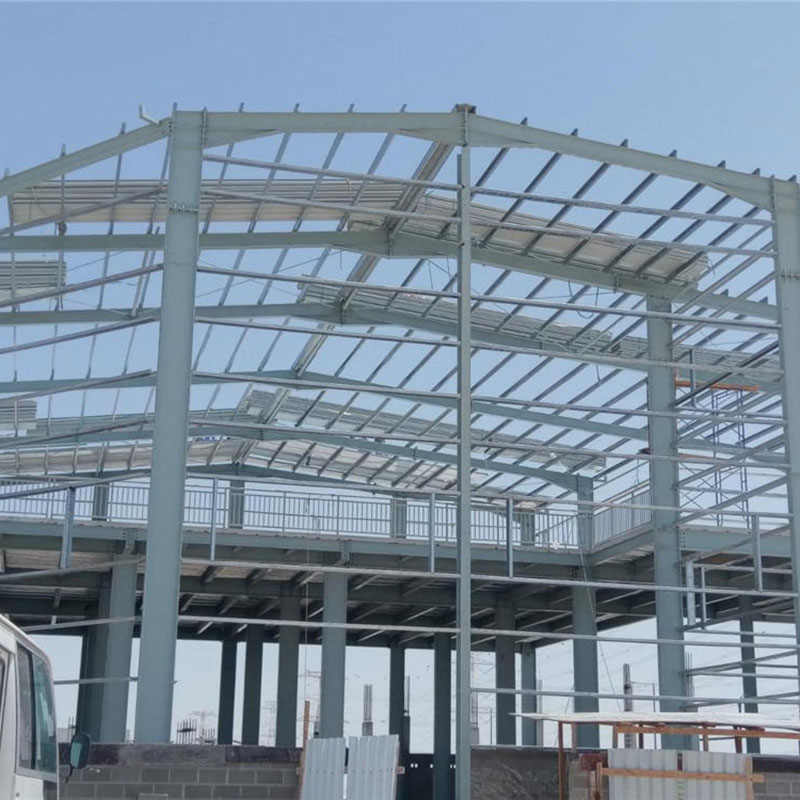

Two Storey Steel Building Metal Prefab Storage Buildings In Qatar
Two Storey Steel Building Metal Prefab Storage Buildings In Qatar
Steel structure warehouse is more cost-effective than other traditional concrete block building systems, cause steel is the super-strong material that can use less material to achieve the same structural scale. And all steel framing members are cut, welded, drilled, painted at the factory. They can be bolted together once they arrive at the construction site.
Description：
Two Storey Steel Building Metal Prefab Storage Buildings In Qatar
About us
Foshan TianPuAn Building Materials Technology Co.,Ltd.(TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop(Lishui town/Gaoming town)with total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.
Product Description
Product type: Two Storey Steel Building Metal Prefab Storage Buildings In Qatar
The steel structure building is widely used in the construction of buildings such as warehouses, workshops,
and large factories.hangar/garage/chicken shed, exhibition hall, agricultural storage, logistic centers etc.
Steel building save money, time and environment
– Recycled steel
– Lower energy use
– Versatility
– Quick construction
– Simple remodeling
– Affordable
– Easy care
Steel building materials component
| Embedded parts | Anchor bolt | M30 |
| High strength bolt | M20,10.9S | |
| Common bolt | M20 | |
| Galvanized bolt | M12 | |
| Shear studs | M16 | |
| Brace | M12 | |
| Main steel frame | Steel column(Q235B) | HN350X175X6X9 |
| Wind column(Q235B) | HN300X150X5.5X8 | |
| Roof beam(Q235B) | HN350X175X6X9 HN300X150X5.5X8 | |
| Roof frame beam(Q235B) | HN400*200*7*11 | |
| Floor beam(Q235B) | HN350X175X6X9 | |
| Tie rod | Ø89*3.0 | |
| Horizontal bracing | Ø20 | |
| Column bracing | Ø20 | |
| Wall purlin(Galvanized) | C160*50*20*2.0 | |
| Roof purlin(Galvanized) | C160*50*20*2.0 | |
| Connecting plate | 4mm～20mm steel sheet | |
| Maintenance | Roof tile | 50mm sandwich panel(steel sheet thk:0.276mm, density:80kg/m³ ) |
| Wall panel | 50mm sandwich panel (steel sheet thk:0.276mm, density:80kg/m³ ) | |
| Partition wall panel | 50mm sandwich panel (steel sheet thk:0.276mm, density:80kg/m³ ) | |
| Rolling door(automatic) | W4500*H5000 | |
| Steel door | W1000*H2100/W850*H2100 | |
| Sandwich panel door | W5000*H3500 | |
| Aluminum window (thk:1.2mm) | W250*H2000/W1130*H1000/W2000*H1000 | |
| Aluminum window with security mesh(thk:1.2mm) | W500*H500 | |
| Gutter | PVC | |
| Down pipe | PVC110 | |
| Trimming | 1.0mm galvanized /steel sheet | |
| Decoration | Office floor tile | 800*800 |
| Outdoor electric gate (W:7000mm*H2000mm) | Column: 80*80*2.0mm Zinc Steel Pipe Cross pole: 50*50*1.5mm zinc steel pipe |
|
| Small gate (W:800mm*H2000mm) | Column: 80*80*2.0mm Zinc Steel Pipe Cross pole: 50*50*1.5mm zinc steel pipe |
Product Characteristics
2. Environmentally friendly, recycling.
3. Flexibility when fixing doors, windows and interior partitions
4. Steel structure construction is strong, durability and stability.
5. Steel components is resistant to termites and other destructive insects.
6. Long service life for more than 50 years
7. Fast construction ,easy installation and convenient to transport.
Our services
1. Project Services
Simple or complex,our specical project services team quickly an expertly handle your project.
2. Private manufacturing services(OEM)
We can manufacture and deliver high quality metal building system under your brand name.
Private Label Services.
3.Private Label Services
Promote your company name and brand as a top resource for cost-effective, quality metal buildings.
Market
We produce, and expert in steel structure warehouse/workshop/storage/building since 2008.
Our main markets are Southeast Asia, Africa, the Middle East, and some island countries, etc.
